Isokern Garden Fireplace 500 - Small Outdoor Fireplace and Barbecue

Code 169566
Ex VAT £813.94Inc VAT £976.73
Code 169566
Ex VAT £813.94Inc VAT £976.73
Save
Earn 0 reward points with this product.

Sorry we're out of stock!

Enter your email address below and we’ll notify you as soon as it becomes available.

  • Description

    A stunning and practical focal point for your garden.

    The Isokern Garden Fireplace 500 kit comes with everything you need to assemble :

    • Chimney blocks
    • Lip glue for assembly
    • Firebricks
    • Firebrick mortar
    • Render
    • Log retainer
    • Barbecue grill

    Additional log stores are available which can be placed either side of the fireplace.

    Features and Benefits :

    • Natural volcanic pumice for insulation
    • Lightweight and easy to build with all materials included
    • Fully load bearing but does require a sturdy base to build onto
    • Can be freestanding or built against a wall
    • Additional chimney blocks available to extend the chimney height if required

    Can be painted

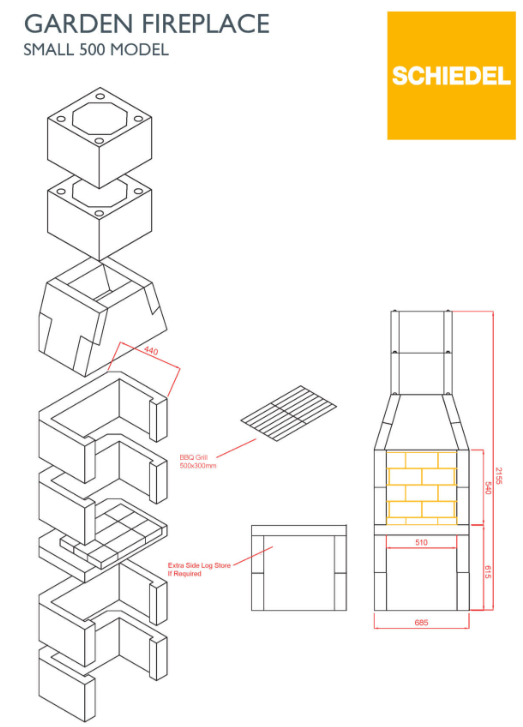

    PDFIsokern Garden 500 Dimensions

    ⚠️ Important: If you are not building it straight away and plan to store it outside, you must keep the following items in a dry place indoors:

    Lip glue

    Render

    Firebrick mortar

    Instruction manual

    These items are sensitive to moisture and must be protected from the elements. Failure to store them correctly may affect any future claim for replacement, as damage from incorrect storage is not covered.

    A garden fireplace with its own barbecue chimney

    The Garden Fireplace 500 is the smallest model in Schiedel's Isokern outdoor range. It is built from natural volcanic pumice from the Hekla volcano in Iceland, so the firebox and its barbecue chimney are insulated. With the log retainer and grill fitted it works as a wood-fired barbecue; without them it is an outdoor fireplace.

    Schiedel code169566
    Overall size685mm wide x 440mm deep x 2155mm high
    Fire opening510mm wide x 540mm high
    Inside depth (after firebricks)approx. 315mm
    Built weight460kg
    Chimney blocks included2 (more can be added for extra height)
    IncludedLog retainer and barbecue grill

    Building it

    Because the finished fireplace is so heavy, Schiedel says it must not be built on decking and recommends a reinforced concrete base at least 100mm thick. Leave at least 75mm between the fireplace and any wooden or other combustible material. It can stand freestanding, raised, or against a wall, and the pumice can be rendered or painted.

  • More Info...

     Isokern Garden 500 Dimensions : PDF

    Isokern Garden 500 Installation Guide : PDF

  • Delivery Information...

    3-4 days FREE Pallet delivery - delivery to kerbside only ( no unpacking) - 1 person with tail lift and pallet truck - weekdays only

    Please let us know if you have any restricted access or other local issues that could affect delivery so we can request smaller vehicles etc

    We will contact you to arrange your delivery

    The driver will bring your pallet delivery as close as possible to your property but is unable to wheel across gravel , up steps or steep slopes.  Pallets measure from 1000 - 1200 mm square so may not fit through gates etc
