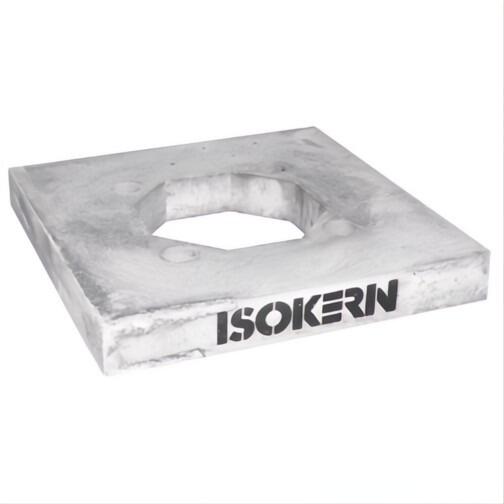

Isokern Square Corbel
Code 130735
Ex VAT £105.98Inc VAT £127.18
Save
Earn 0 reward points with this product.

Sorry we're out of stock!

Enter your email address below and we’ll notify you as soon as it becomes available.

  • Description

    800mm square corbel for brickwork

  • More Info...

    Where the DM54 corbel goes

    On an Isokern DM54 chimney with a brick or stone stack above the roof, the corbel is fitted just below the roof so the chimney can be clad in brick or stonework externally. DM54 is the double module system for larger open fires and appliances, with a 545mm square casing and a 300mm or 345mm internal diameter flue.

    FitsIsokern DM54 (300mm and 345mm internal diameter flues)
    Size800mm square, 75mm high
    Weight57kg
    PositionJust below the roof, under the external brick or stone stack

    Building the brick stack (Schiedel guidance)

    • Use trusses and trimmers to brace the cladding as it passes through the roof.
    • Fit a Code 4 lead tray with 50mm upstands and stepped flashing in line with the Building Regulations. The upstand should fit tight to the outside of the flue block and, where possible, be turned in by about 10mm.
    • Fit the damp-proof tray at least 150mm above the lowest point where the stack meets the roof, and leave weep holes at the front of the stack above the tray.
    • If the stack is less than 1.4m above the roof, the casings can be left out above the corbel.

    To finish the stack, the matching DM54 square capping for brickwork goes on top. The other parts are the DM54 casing, the DM54 6 metre flue pack for brickwork and the rest of the Isokern DM range. The DM calculator works out the parts for your chimney height.
