Isokern Pumice 200mm Chimney Liner Pack 7.2 Metres
Isokern Chimney Systems
Free Delivery On all Isokern Pumice Liner Packs
Free Delivery on other Isokern products with basket totals over £650.00
Schiedel Isokern Pumice Chimney Liners are designed to be built into your chimney stack normally under new house construction aswell as relining existing masonry chimneys. These Liners are made from high insulative Pumice which helps with your chimneys performance and efficiency.
Isokern Chimney Systems
Isokern Chimney Systems
Isokern Chimney Systems
Isokern Chimney Systems
Isokern Chimney Systems
Isokern Chimney Systems
Isokern Chimney Systems
Isokern Chimney Systems
Isokern Chimney Systems
These liners come in a variety of sizes from 150mm, which is ideal for many wood or multi fuel stoves, up to 600mm internal diameter for specialist flue such as large open fires. Isokern also offer stainless steel connections to enable you to go from stainless steel flue pipe to Pumice liner giving a proper connection for the best installations

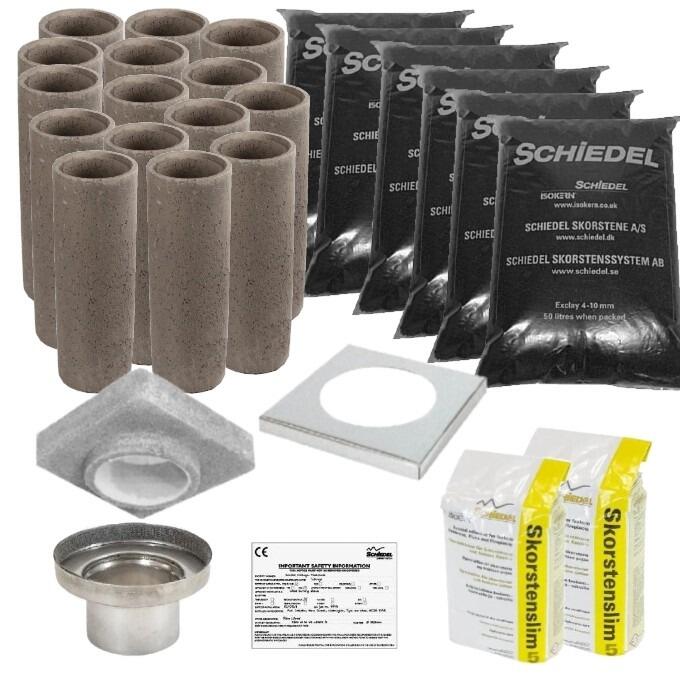

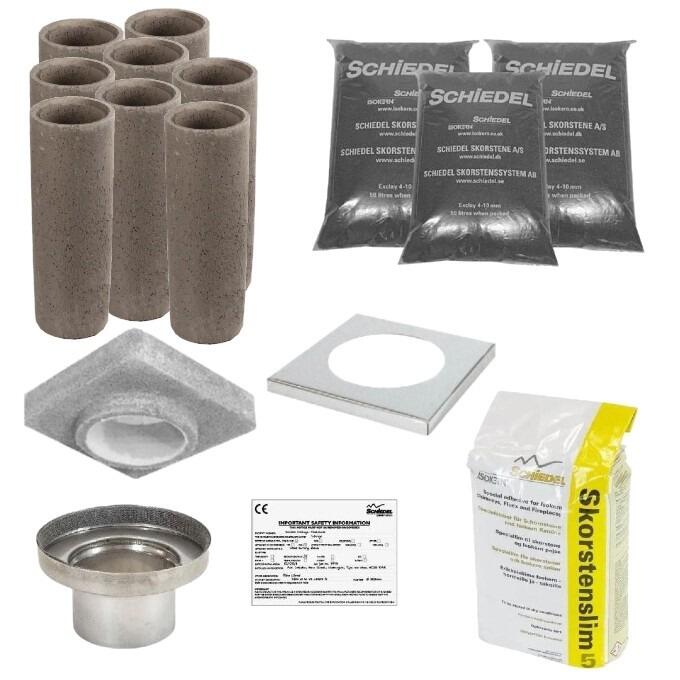

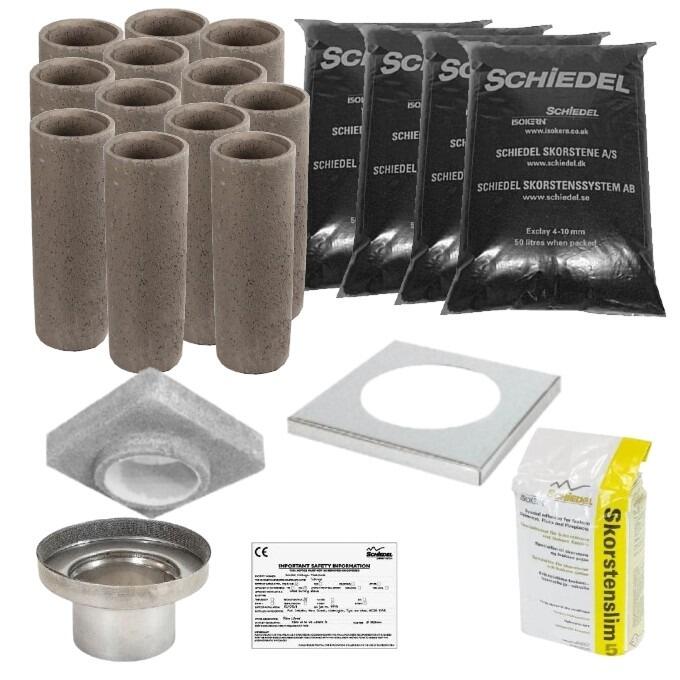

A liner pack gives you everything for one straight run of Isokern pumice flue in a single order, at a set height: 4.8, 6.0, 7.2 or 9.0 metres. Each pack contains rebated 600mm pumice liners, lip glue for the joints, bags of light expanded clay aggregate to insulate around the liners, and a chimney notice plate. Most packs for stove connections also include the liner support block and stainless steel adaptor that join the liner run to the stove pipe. Check the list on each pack, because the exact parts vary by diameter.
Schiedel designs pumice liners for masonry chimneys, with the liners surrounded by brick, block or stone. They work for a new-build chimney or for relining an existing one, with inserts, stoves, open fires and cookers burning wood, solid fuel, oil or gas. They are not suitable for condensing appliances, including pellet or biomass.
Start with the flue size in your appliance manufacturer's instructions, then measure the height from the support point to the top of the stack. If your run falls between pack heights, add individual liners to the nearest pack below. Our Liner Calculator picks the parts for your height.
Liner sizes used in our packs (Schiedel Isokern UK brochure, December 2024)
| Liner internal diameter | Outside diameter | Weight per 600mm liner | Support plate |
|---|---|---|---|
| 150mm | 200mm | 8kg | 340mm square (210mm opening) |
| 175mm | 235mm | 11kg | 360mm square (255mm opening) |
| 200mm | 250mm | 12kg | 360mm square (255mm opening) |
| 225mm | 285mm | 14kg | – |
| 350mm | 416mm | 27kg | – |
The 150mm to 225mm packs come in 4.8, 6.0, 7.2 and 9.0 metre lengths. The 350mm pack is 7.2 metres.
Can I reline an existing chimney with an Isokern pack?
Yes. Schiedel designs pumice liners for relining existing masonry chimneys as well as for new builds. The liners must be surrounded by the masonry and insulated with clay aggregate.
How much clay aggregate do I need?
It depends on the size of the void inside your chimney. Each pack lists the quantity for a stated internal chimney size. Larger voids need more bags, which you can add from the accessories range.
Can the liner run have bends?
Yes, up to two offsets (four bends) per chimney, each no more than 45° from vertical. Bends need support and backfill, and any cut joint needs a steel collar and lip glue.
Are pumice liners suitable for a pellet stove?
No. Schiedel states pumice liners are not suitable for condensing appliances, including pellet or biomass.
When can I light the fire?
Leave the chimney at least 72 hours after installation. Then burn only small fires for the first week and build up gradually.
How should the flue be swept?
At least twice a year, before and after the heating season, with a medium density polypropylene brush the same diameter as the flue. Never use a steel brush on pumice.
Popular packs:150mm 4.8m · 150mm 7.2m · 175mm 6.0m · 200mm 6.0m · 225mm 6.0m. Need single items? See Isokern liners and accessories.
